PSA-3000 Familiy Power Sourcing Equipment Testers

The worlds leader PoE and PoE fully atomated testsystem for lab, production and conformance testting. The PowerSync® 3000 family also covers PoE loads and small 2 port testers.

Power-Over-Ethernet+ PSE Evaluation, Design, QA, System Test

Afbeeldingsresultaat voor PowerSync® Analyzer 3000 Family

PSA-3000; PowerSync Analyzer

PSA-3000 Key Features

Industry Leading IEEE 802.3at PoE PSE Conformance Tests
Unique, Automated Multi-Port PSE System Analysis for 802.3at
Continuous 2-Pair PSE Loading > 47 Watts / Port x 24 Ports
Continuous 4-Pair PSE Loading > 99 Watts / Slot x 12 Ports
Flexible 802.3at PD LLDP Emulation and LLDP Analysis
Hardware / Firmware Ready for IEEE 802.3bt PSE Testing*
Replaces All General Purpose Test Equipment & Fixtures
One-Button 2-Pair and 4-Pair PSE Waveform Analysis
Highly Scalable and Upgradeable Test Ports and Features
Flexible, Accurate Measurements of Voltage, Current, & Noise
Noise Immune Triggers, Transients, & Time Intvl. Measurements
Supports PSE Packet Transmission Testing with PoE Loads
Smart Fan Control – Runs Cool and Quiet
High Level Script Automation and Graphical User Interface

* When equipped with PSA-3202 test blades

Afbeeldingsresultaat voor PSA-3248 RackPack PowerSync Analyzer

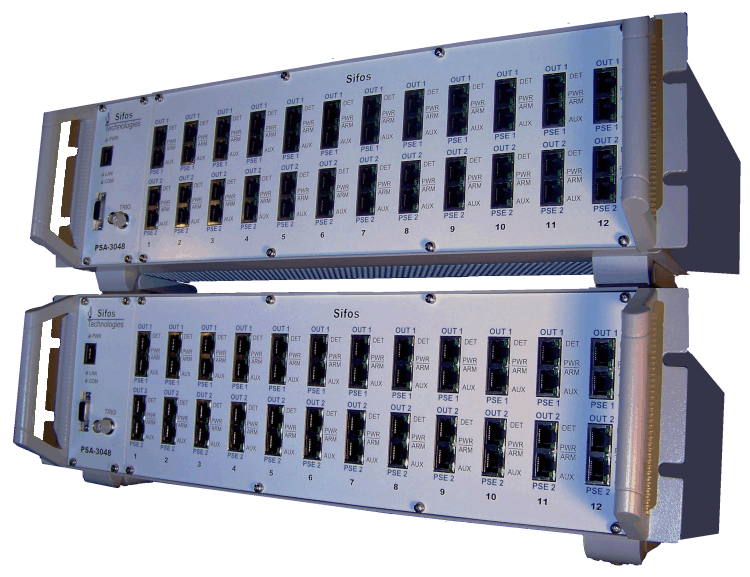

PSA-3248; RackPack PowerSync Analyzer (click to enlarge)

PSA-3248 Key Features

48 Port Bundled PowerSync Analyzer – Reduced Cost / Port
Industry Leading IEEE 802.3at PoE PSE Conformance Test Suite
Unique, Fully Automated Multi-Port PSE System Analysis
Continuous 2-Pair PSE Loading > 47 Watts / Port x 48 Ports
Continuous 4-Pair PSE Loading > 99 Watts / Slot x 24 Ports
Hardware / Firmware Ready for IEEE 802.3bt PSE Testing
High Level Script Automation Supports High Speed PSE Testing
Replaces All General Purpose Test Equipment & Fixtures
Flexible Powered Device LLDP Emulation and LLDP Analysis
One-Button 2-Pair and 4-Pair PSE Waveform Analysis
Flexible and Accurate Measurements of Voltage, Current, Noise
Noise Immune Triggering, Transients, and Time Interval Measurements
Supports PSE Packet Transmission Testing with PoE Loads
Smart Fan Control – Runs Cool and Quiet
Software Compatible with Sifos PSA-3000 Family

Afbeeldingsresultaat voor PSA-3002

PSA-3002; Compact PowerSync Analyzer

Key Features

Industry Leading IEEE 802.3at PoE PSE Conformance Tests
Replaces All General Purpose Test Equipment & Fixtures
Small, Light Weight, Transportable
Continuous PSE Loading > 42 Watts Per Test Port (2 Test Ports)
Continuous 4-Pair PSE Loading to 75 Watts (Single Port)
One-Button 2-Pair and 4-Pair PSE Waveform Analysis
Flexible Powered Device LLDP Emulation and LLDP Analysis
Flexible and Accurate Measurements of Voltage, Current, Noise
Noise Immune Triggering, Transients, and Time Interval Measurements
Supports PSE Packet Transmission Testing with PoE Loads
High Level Script Automation and Graphical User Interface
Software Compatible with Sifos PSA-3000 Family

Afbeeldingsresultaat voor PSL-3000

PSL-3000; PowerSync Programmable Load

Key Features

Flexible Multi-Port 802.3at PD Emulation, PSE Loading, & Measurements
Unique, Fully Automated Multi-Port PSE System Analysis
Continuous 2-Pair PSE Loading > 47 Watts Per Port x 24 Ports
Continuous 4-Pair PSE Loading to > 99 Watts Per Test Blade x 12 Ports
Hardware / Firmware Ready for IEEE 802.3bt PSE Testing*
DC Voltage, Current, and Power Metering on 2-Pair and 4-Pair PSE’s
Flexible 802.3at Powered Device LLDP Emulation and LLDP Analysis
Scalable Features, Cost-Efficient Architecture
PSA Interactive-PL Graphical User Interface
Supports PSE Packet Transmission Testing with PoE Loads
Flexible 4-Pair Signature and Static Load Control
Smart Fan Control – Runs Cool and Quiet
High Level Script Automation – Extensively Documented
Fully Certified Commercial Test Instrument

* When equipped with PSL-3202 load blades

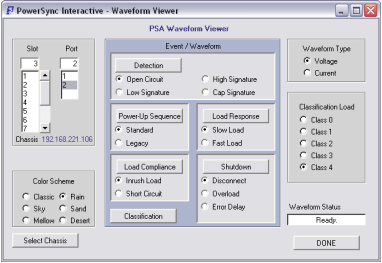

Powerful PSE Analysis with PowerSync Analyzer Scope Displays

Standard PSE state behaviors are just one button click away with the Standard Waveforms feature included with all PowerSync Analyzers.* Ideal for troubleshooting Conformance Test problems or evaluating PSE state transition behaviors.
