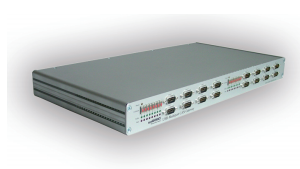

USB - CANmodul16

Based on the successful USB CAN Interface designs, the USB-CANmodul16 version bundles 16 CAN-channels in one device, connected to the PC via two high-speed USB2.0 interfaces with up to 480Mbps. This USB CAN Interface allows a most comfortable, yet cost efficient way to transfer CAN-bus messages in distributed systems that require a centralized data collection, like used in automotive applications, research institutes or laboratories.

As all other versions of the SYS TEC USB CAN Interface series, the USB-CANmodul16 supports all kind of higher-layer CAN-based protocols, such as CANopen, SDS, DeviceNet or J1939. Its new 32-bit CPU core ensures reliable communication even at high busload, and provides precise message time stamps. The PC driver allows for easy plug&play installation and supports simultaneous operation of up to 64 CAN-channels on the same PC. With its high density of communication channels, the USB-CANmodul16 is ideal suited for servicing and maintenance tasks of CAN-bus systems.
USB CAN Interface - Key features

    * 16 high-speed CAN-channels according to ISO 11898-2, galvanic isolated
    * Time-stamped CAN messages
    * Supports 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
    * Reliable error handling
    * Supports "listen-only" mode for use with analyzing tools
    * Self-powered with wide range power supply of 85 VAC to 264 VAC
    * Excellent EMC performance
    * 2 high-speed USB2.0 devices with up to 480 Mbps for connection to the PC
    * Quick and easy Plug&Play installation
    * Simultaneous use of up to 4 USB-CANmodul16 devices on a single PC, providing access to up to 64 CAN-channels

USB CAN Interface - Software Support

    * Configuration tool for management of multiple USB-CANmodul devices
    * PCAN View, a simple CAN monitor that allows for reception and transmission
      of CAN messages
    * Programmers API and demo source for Microsoft Visual C++, LabView,
      Visual Basic .NET
    * Device drivers available for Windows® 7/Vista/XP (32/64 bit), Windows® 2000,
      WinCE 5.0, WinCE 6.0

USB CAN Interface - Technical Data

    * High-speed CAN2.0B interface according to ISO 11898-2, galvanic isolated
    * Supported bitrates: 10 to 1000 kbps
    * USB2.0 high-speed device, up to 480 Mbps
    * CAN-bus interface connector: SUB-D9
    * Supported CAN transceivers: 82C251, SN65HVD23x, TLE6250G, TJA1050
    * LEDs for power-supply, CAN state and CAN traffic
    * CE conformity
    * RoHS conformity
    * Power supply: 85 ... 264 VAC, 50/60Hz
    * Operating temperature: 0°C...+55°C
    * Housing: 1HU 19" rack-mounted

USB CAN Interface - Scope of delivery

    * Assembled and tested device,
    * USB-cable (1,8m),
    * Documentation on CD
    * Device drivers
    * PCAN View CAN-bus monitor
    * Evaluation versions of CAN-REport and CANopen Configuration Suite
