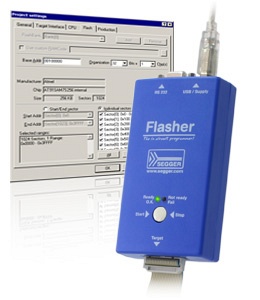

Flasher 5 (ST9 and M16)

Flasher-5 is a Flash programmer for M16C, M32C, R8C, R32C, M38000 and ST9 series of flash microcontrollers.
Flasher-5 is a programming tool for microcontrollers with on-chip Flash memor. Flasher-5 is designed for programming flash targets with the J-Flash software or stand-alone. In addition to that Flasher-5 has all of the J-Link functionality. Flasher-5 connects via USB or via RS232 interface to a PC, running Microsoft Windows 2000, Windows XP, Windows 2003 or Windows Vista and has a built-in target connector.



Features

    * Small, compact housing
    * Easy to use windows program
    * Serial (in target) programming supported
    * Programming / Verifying / Read back supported
    * 2MByte internal Flash memory to store target program
    * High speed programming: app. 17 sec for 256 kb in serial mode with 10 MHz M16C target for programming and verification
    * Can be used in a production environment
    * PC program allows batch mode processing for usage in automated test systems.
    * Once set up, Flasher can be controlled without the use of PC program
    * ASCII command interface to control Flasher without the use of PC program (Requires firmware version 1.84 or above)



How to buy :

Please contact Glenn Moloney to discuss your configuration and get a quotation today.



Release history :

January 2010:
Support for RENESAS R8C/32A added.
Support for RENESAS R8C/32C added.
Support for RENESAS R8C/3JA added.
Support for RENESAS R8C/33A added.
Support for RENESAS R8C/33C added.
Support for RENESAS R8C/33T added.
Support for RENESAS R8C/35A added.
Support for RENESAS R8C/35C added.

November 2009:
Support for RENESAS R8C/34E added.
Support for RENESAS R8C/34F added.
Support for RENESAS R8C/34G added.
Support for RENESAS R8C/34H added.
Support for RENESAS R8C/36E added.
Support for RENESAS R8C/36F added.
Support for RENESAS R8C/36G added.
Support for RENESAS R8C/36F added.
Support for RENESAS R8C/38E added.
Support for RENESAS R8C/38F added.
Support for RENESAS R8C/38G added.
Support for RENESAS R8C/38F added.
Support for RENESAS M16C/6C added.
Support for RENESAS M16C/64A added.

January 2009:
Support for RENESAS R8C/1A added.
Support for RENESAS R8C/1B added.
Support for RENESAS R8C/24 added.
Support for RENESAS R8C/25 added.
Support for RENESAS R8C/2A added.
Support for RENESAS R8C/2B added.
Support for RENESAS R8C/2C added.
Support for RENESAS R8C/2D added.
Support for RENESAS M16C/56 added.
Support for RENESAS M16C/5L added.
Support for RENESAS M16C/63 added.
Support for RENESAS M16C/65 added.
Support for RENESAS M38049FFHSP and M38049FFHFP added.

April 2008:
Support for RENESAS M16C/28B, M3062LFGPFP, M3062LFGPGP added.

March 2008:
Support for RENESAS R8C/28, R8C29, M16C/64, M16C/65, M16C/6s added.

December 2007:
Support for RENESAS R32C and R8C added.

October 2006:
Flasher 5 rev. 3 comes with 2MByte Flash to store target data.
This allows programming of all RENESAS CPUs with more than 512KB Flash when Software 1.96a or above is used.
All Flasher 5 with series number above 51584 can be upgraded by just using the new Flasher software.

May 2005:
Up to 20 COM ports supported by FLASHER PC program.
Additional options and commandline parameter added.
Multiple individual setups can be controlled with command line to support multiple Flasher on one PC.

January 2004:
ASCII command interface implemented to control Flasher from any application without the need of Flasher PC program.
