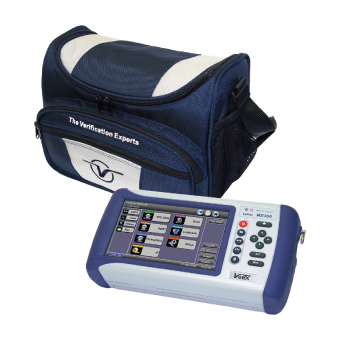

10GE including optional dual 1GE and 10/100/1000BaseT test ports are housed in the industry’s smallest Metro/Ethernet tester. A high capacity battery pack supports up to three hours of continuous operation at 10GE test interface. The MX300 can be used in any lighting condition thanks to a super bright, 7” TFT color LCD. Advanced Ethernet tests such as RFC2544, Layer 1 to 4 BERT, Throughput, multi-stream, Q-in-Q, MPLS, VLAN and MAC flooding are supported at all rates. Triple play testing and verification of VoIP, IPTV, FTP/Web throughput, and Web Browsing services are optional features. Field, interchangeable, MSA compliant XFPs and SFPs of various wavelength and dynamic range combinations provide maximum flexibility.

Key Features :

10GbE LAN and WAN

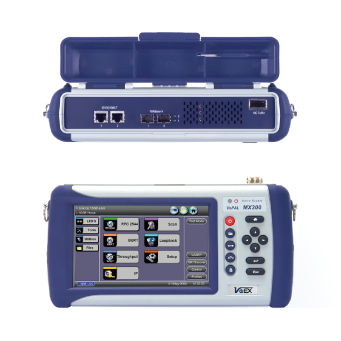

One 10GbE LAN/WAN XFP port, two 1000Base-X SFP ports, and two 10/100/1000T RJ45 ports
All-in-one 10 Gigabit Ethernet LAN/WAN, Gigabit Ethernet, and Fast Ethernet testing
Ideal for the lab testing and field testing environments
Throughput, latency, frame loss, and back-to-back measurements per the industry-standard RFC 2544 tests
Unframed BER testing to validate error free fiber connections
BER testing at layer 1, layer 2, and layer 3, with or without VLAN and MPLS tags
Q-in-Q (VLAN stacking) capability, with up to three VLAN tags
Multiple stream traffic generation and analysis for end-to-end QoS verification of multiple services
MPLS stacking capability, with up to three MPLS labels
Intelligent device discovery mode; discover other MX300s on the network for quick and easy loopback control configuration
Smart Loop mode for layer 1, layer 2, and layer 3
Remote control capability through the ReVeal PC
software

Platform Hightlights :

Intuitive presentation of measurements with test graphics
High resolution color touch-screen viewable in any lighting conditions fitted with protective cover
Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions
Optimized for field engineers or technicians installing and maintaining Ethernet networks enabling triple play services
Ethernet connection for back office applications, workforce management and triple play service verification
User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
USB memory stick and FTP upload support for test result storage/file transfer
Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using the included ReVeal™ PC software
Extend field testing time using interchangeable LiIon
battery pack/s
Greater battery autonomy provided in standby mode
