Next Generation Network testing

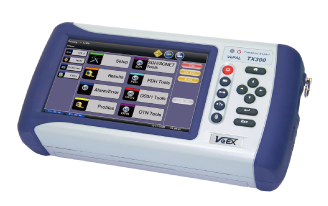

Weighing less than 2.5kg (6lbs), the TX300e is the smallest full featured 10 Gigabit Next Generation Network analyzer available. Versatile hardware and software options optimize configuration for transport applications at rates ranging from DS1/E1 to OC-192/STM-64 and/or Metro Ethernet testing options including 10GE, 1GE and 10/100/1000Base-T. Storage Network testing options such as Fiberchannel can be added via a simple software option to Metro Ethernet configurations. A super bright, touch panel 7" TFT color LCD enhances viewing and operation in any lighting conditions, while an intuitive graphical user interface simplifies menu navigation and accelerates test setup. An advanced low power consumption design combined with a high capacity LiIon battery pack provides up to 4 hours of continuous operation when the unit is operating at the 10Gigabit interface. Industry standard, field interchangeable XFPs and SFPs are supported, ensuring maximum wavelength and dynamic range flexibility.

Platform Highlights

Intuitive presentation of measurements with test graphics
High resolution color touch-screen viewable in any lighting conditions
Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions
Optimized for field engineers or technicians installing and maintaining SDH networks transporting legacy and next generation Ethernet services
Ethernet connection for back office applications,workforce management and triple play service verification
User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
USB memory stick and FTP upload for test result storage and file transfer
Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using the included ReVeal™ PC software
Extend field testing time using interchangeable LiIon battery pack/s

Key Features

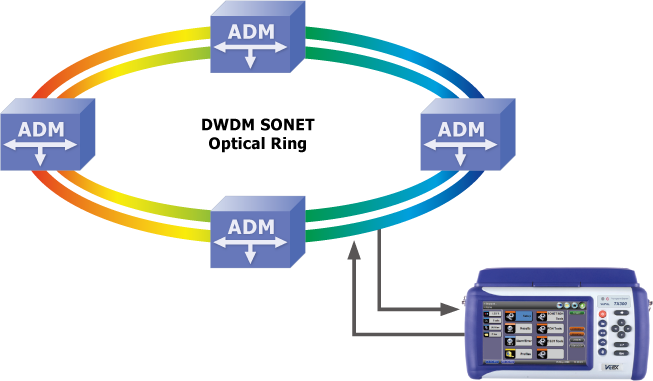

OTN/SDH/PDH Optical SDH testing for 155Mb/s, 622Mb/s, 2.5Gb/s and 10Gb/s
OTN Testing at 2.7Gb/s, 10.7Gb/s. Optional 11.05Gb/s, 11.09Gb/s
PDH testing at E1, E3 bitrates. DS1, DS3 and E4 (Optional)
Dual E1 Receivers for bi-directional monitoring
Non intrusive Pulse Mask Analysis at E1, E3 and DS1, DS3 rates
Optical Power, Electrical Level and Frequency measurements
Concatenated Payloads
Path Trace and Pointer Generation and Analysis

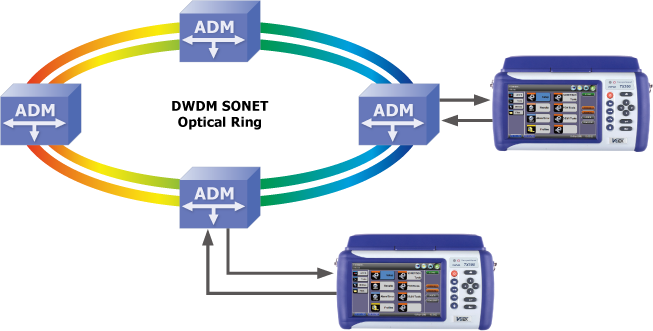

Automatic Protection Switching/Service Disruption testing
Round Trip Delay on all interfaces and payload mappings
Transmit Frequency Offset to stress clock recovery circuits

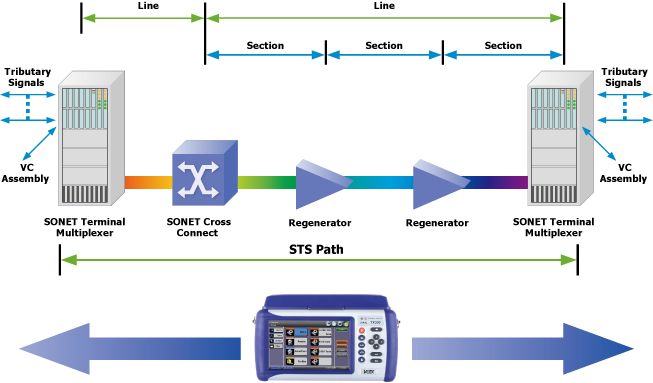

Overhead Monitoring and Byte decoding
Tandem Connection Monitoring

Ethernet/Fibre Channel (Optional)

10GigE LAN and WAN testing

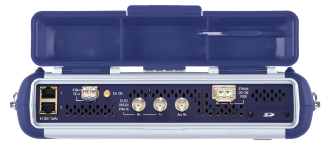

One 10 GbE LAN/WAN XFP port, two 1000Base-X SFP ports, and two 10/100/1000T RJ45 ports
1G/2G/4G Fibre Channel support for Storage Area Networks
Q-in-Q (VLAN stacking) and multiple MPLS tag support
Throughput, latency, frame loss, and back-to-back measurements per industry-standard RFC2544 tests
BER testing at Layer 1, Layer 2 and Layer 3
Multiple stream traffic generation and analysis for end-to-end QoS verificaton of multiple services
