iJET-Trace for Cortex A/R/M/

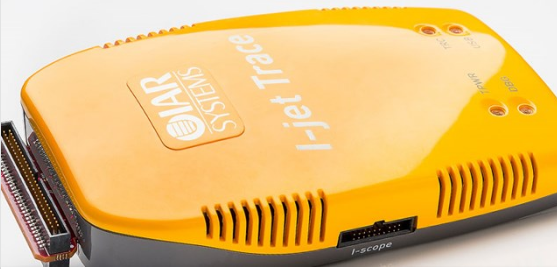

I-jet Trace for Arm Cortex-A/R/M
I-jet Trace for Arm Cortex-A/R/M provides extensive debugging and trace functionality for Arm Cortex devices equipped with the Arm CoreSight debug interface. It delivers large trace memory capacities and high-speed communication via SuperSpeed USB 3.0, and supports Embedded Trace Macrocell (ETM) trace as well as Program Trace Macrocell (PTM).

Specifications I-jet Trace for Arm Cortex-A/R/M

  • Supports Arm Cortex-A, Cortex-R, Cortex-M cores
  • SuperSpeed USB 3.0 interface (5 Gbps)
  • Fully compatible with USB 2.0 (480 Mbps)
  • No power supply required, powered entirely by the USB port
  • Target power of up to 600mA can be supplied from I-jet Trace with overload protection
  • Automatic core recognition
  • CE/RoHS compliant

Debugging features

  • JTAG and SWD clocks up to 100 MHz
  • Support for SWO using Manchester and UART, at up to 200 Mbps
  • Support for multiple JTAG devices with automatic chain detection and graphical display
  • Support for JTAG adaptive clocking (RTCK)
  • Automatic JTAG/SWD detection
  • JTAG voltage measurement and monitoring
  • Target power consumption can be measured with ~160µA resolution at up to 200 ksps (kilo samples per second)


Trace features

  • Trace memory size up to 256 Mbyte
  • Up to 16-bit wide trace data collection
  • Up to 350MHz ETM trace clock
  • 64-bit timestamp with CPU cycle accuracy for timing analysis
  • Automatic alignment of parallel trace data skew on individual bits to compensate for PCB layout and signal integrity problems
  • Automatic trace data and clock voltage threshold adjustments to get the most reliable capture with noisy or un-terminated target boards
  • Support for trace logic levels from 1.2 V to 5V
  • Support for Mictor-38 and MIPI-20 trace headers directly. MIPI-60 supported with an optional adapter
